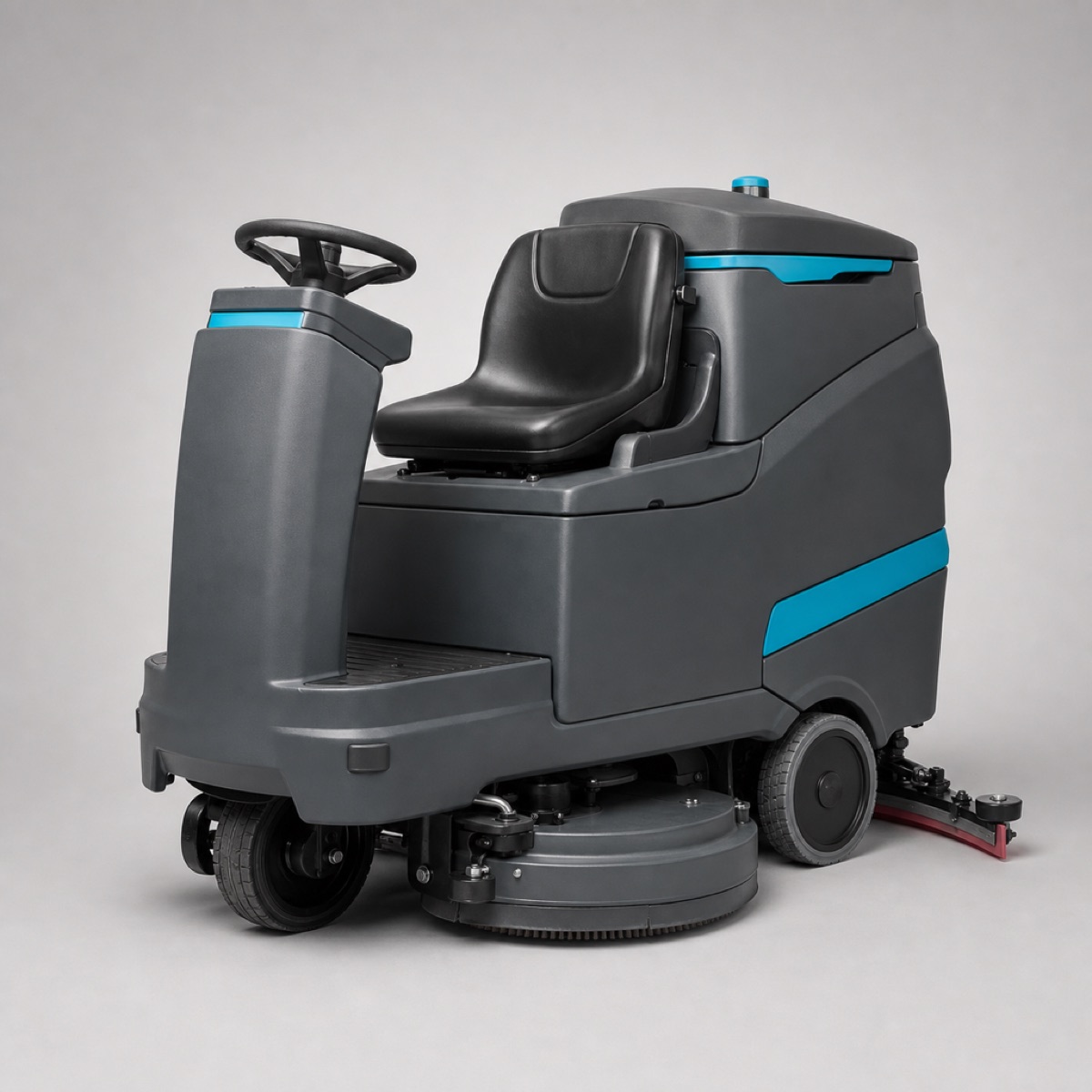

RS-750 Ride-on Scrubber Dryer

A 750 mm twin-disc ride-on scrubber dryer sized for four hours of continuous work between fills, for warehouse and distribution floors.

Brush pressure adjusted from the seat, so one deck covers light and heavy soil

Run time quoted with the deck and vacuum running, not at idle

Recovery tank hinges clear for full access to the battery compartment

Four working edges per squeegee blade set

Specifications

Cleaning width: 750 mm, twin disc
Squeegee width: 950 mm
Tank capacity: 105 L solution / 115 L recovery
Productivity, theoretical: 4,500 m²/h
Productivity, practical: 2,700 – 3,200 m²/h
Power source and run time: 24 V, 240 Ah lithium, up to 4 h with deck and vacuum running
Brush pressure: 32 – 55 kg, adjustable from the seat
Sound pressure: 66 dB(A) at the operator position
Weight, ready to work: 395 kg
Turning radius: 1,450 mm

Product detail

The RS-750 is the machine most operations move to when a walk-behind stops keeping up. A 750 mm twin-disc deck and a 105 litre solution tank mean an operator covers a distribution centre aisle run without leaving the floor to refill, which is usually where the productivity is lost rather than in the scrubbing itself.

Deck and squeegee

Brush pressure is set from the seat between 32 and 55 kg, so the same machine handles a lightly soiled retail floor and a loading bay without a deck change. The parabolic squeegee is 950 mm wide, which gives the deck room to wander in a turn and still leave a dry track behind it. Blades reverse and then swap, four working edges per set.

Run time

Battery capacity is quoted with the deck turning and the vacuum motor running, not with the machine standing still. On a 240 Ah lithium pack that is about four hours of real work, and the pack takes an opportunity charge during a break without shortening its life.

Service access

The recovery tank hinges clear of the battery compartment, the vacuum filter lifts out by hand and the deck drops without tools. Brushes, blades, filters and seals are the parts that decide whether a machine is available next week, so all four are reachable from a standing position.
